Contemporary Custom Home
Located at London ON, this custom-designed residence has been developed in accordance with the Ontario Building Code (2012) and approved by the City of London Building Division. The project delivers a modern two-storey home with a fully finished basement, attached garage, and second-floor balcony.
Designed to maximize functional living space while maintaining energy efficiency and structural integrity, the home integrates practical family-oriented spaces across three levels.
project
type:
Location:
Building Code:
Total Area:
Custom Two-Storey Single Family Dwelling
This Contemporary Custom Home delivers a well-balanced residential design combining structural integrity, energy performance, and functional family living. With a total living area exceeding 3,400 sq.ft. including basement space, the project reflects a practical yet spacious suburban home tailored for long-term occupancy.
[1,000 sq.ft.]

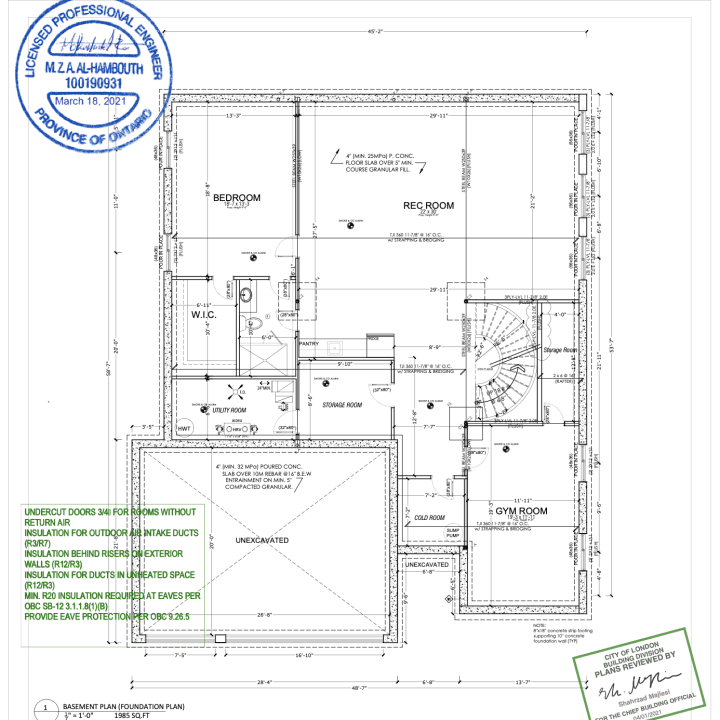

Basement Level
[1,029 sq.ft.]

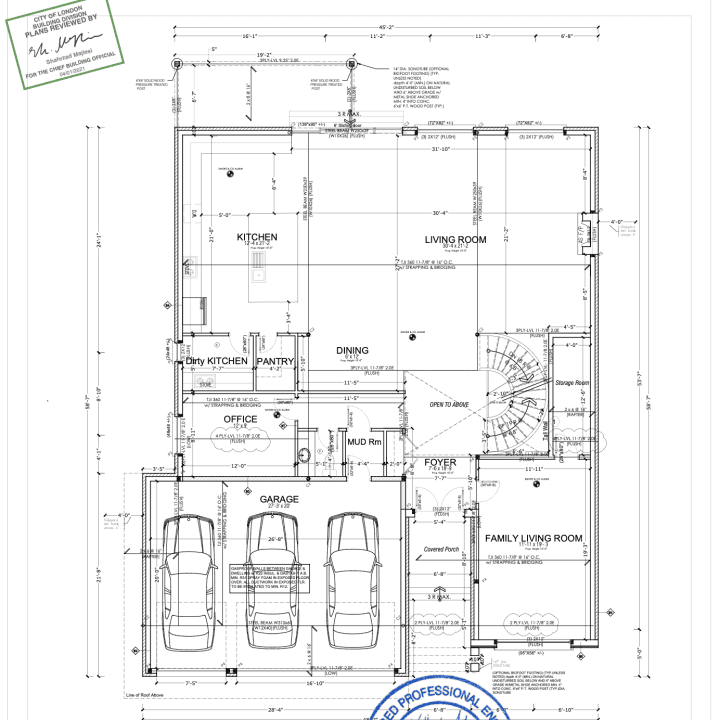

Main Floor
[1,375 sq.ft.]

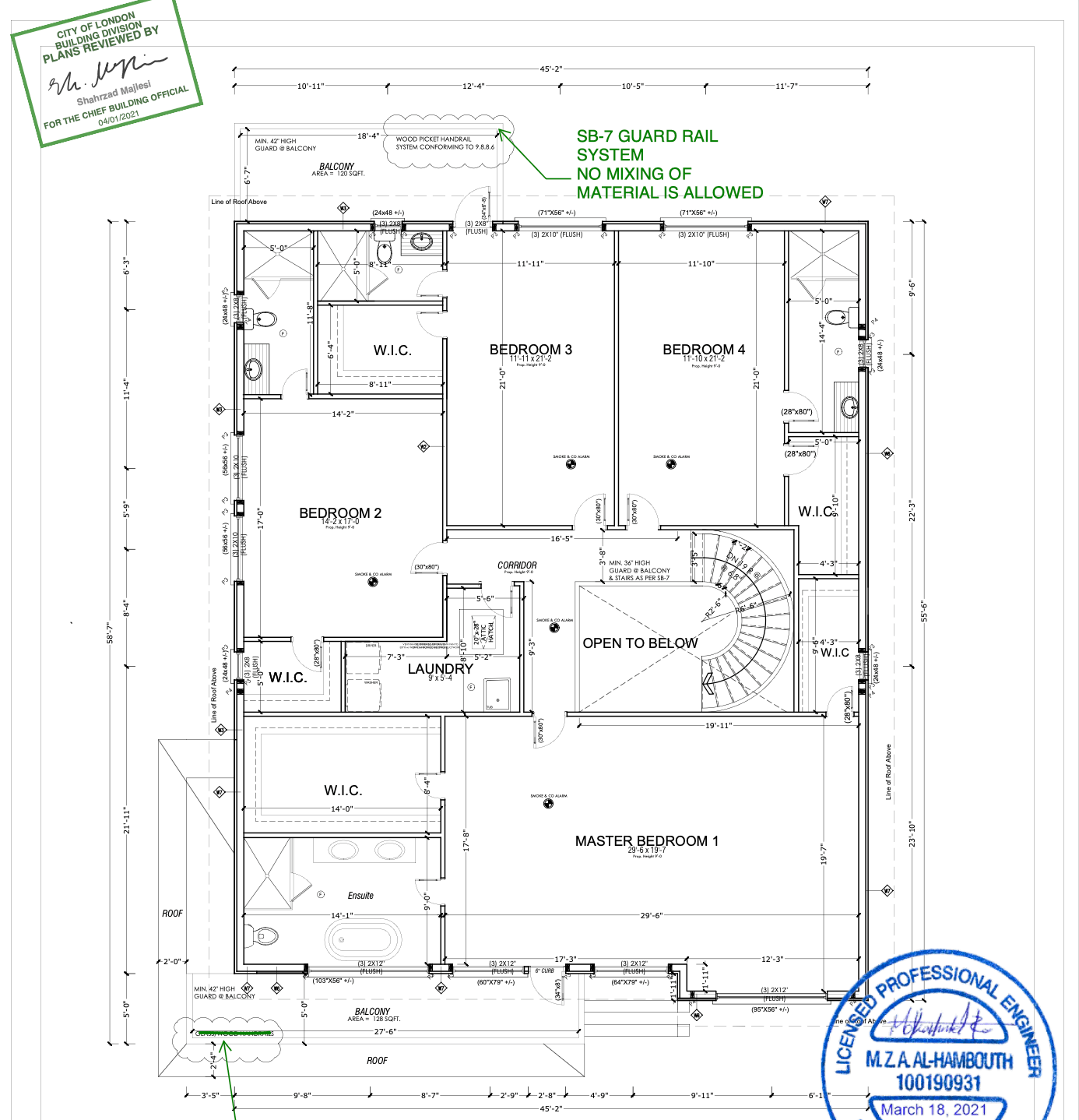

Second Floor
[360 sq.ft.]
Garage Area
Energy & Performance
This project complies with Energy Efficiency Compliance Package “A1” and includes:
R60 ceiling insulation
R31 roof assembly
R22 above-grade wall insulation
R31 exposed floor insulation
High-efficiency furnace (96% AFUE minimum)
HRV system (75% minimum efficiency)
Maximum window U-value of 1.6
Total window area: 402 sq.ft. (approx. 13.6% of exposed wall area)
Structural & Exterior Features
The residence is organized across three functional levels: Basement, Main floor and second floor. Some of the features includes:
10″ poured concrete foundation walls
Engineered LVL beams and steel beam supports
Asphalt shingle roofing (6/12 pitch typical)

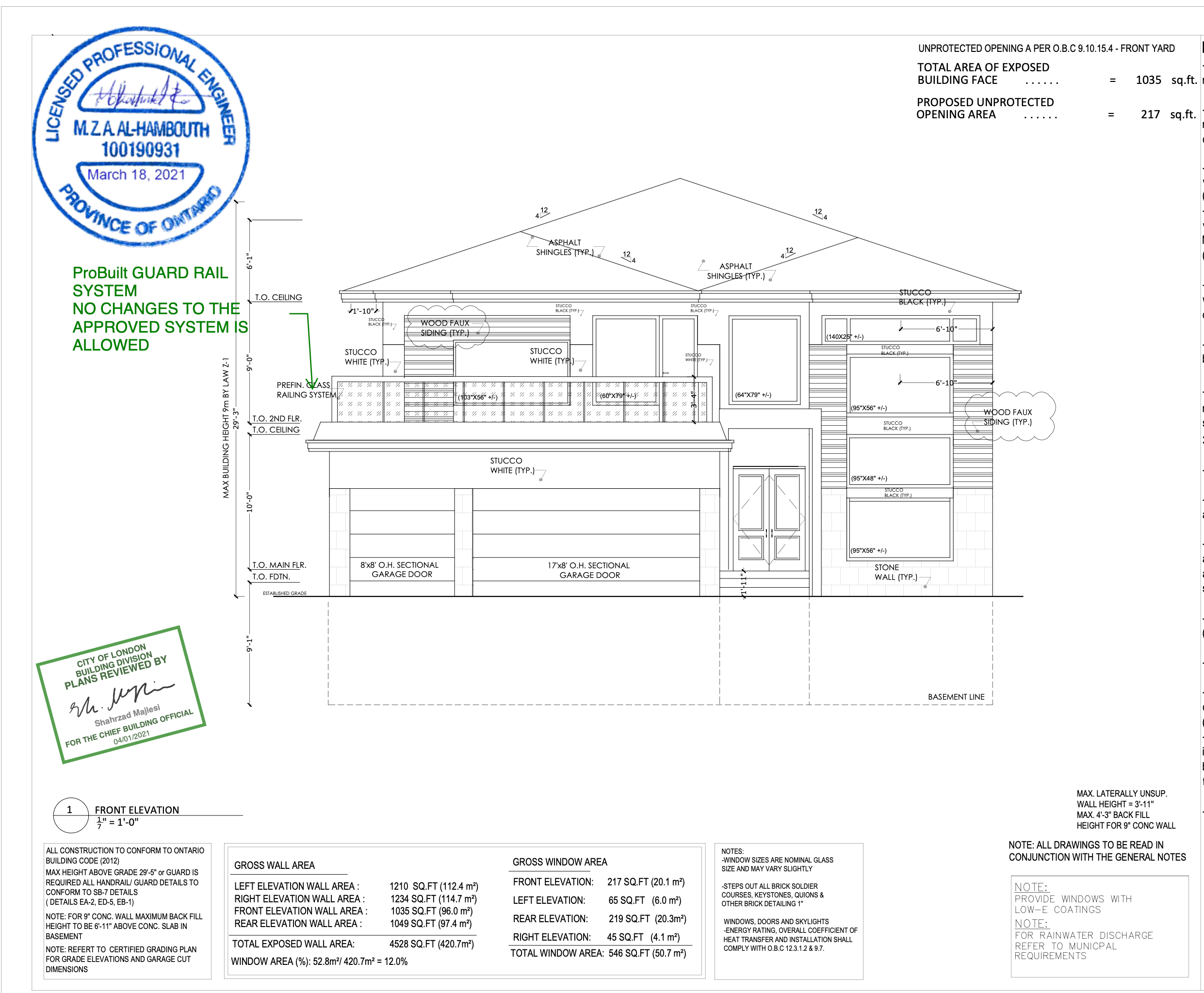

Brick and siding exterior finish
Aluminum fascia and vented soffits
Roof and attic ventilation per O.B.C. requirements
Maximum building height: 29′-5″ (within zoning limits)
